Auto loading and unloading crane pipe LTQC type

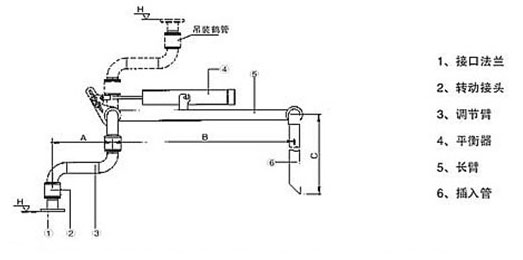

1. LTQC—B type tank car top crane pipe
Features
Used in auto open unloading. Arm pipe adopts seamless steel pipe. It gets simple structure, safety and reliability.
Specification size
|
Type
Parameters |
A
|
B
|
C
|
H
|
Remarks
|
|
LTQC-80B
|
600
|
1800
|
1500
|
2200~2600
|
Pedestal crane pipe
|
|
LTQC-100B
|
|||||
|
LTQC-80B
|
600
|
1800
|
1500
|
3500~4000
|
ceiling mounted crane pipe
|
No: H——height from connection flange to the ground

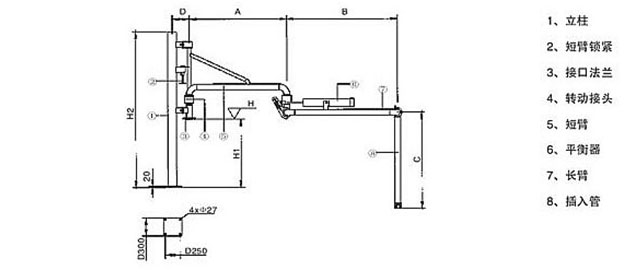

2. LTQC—A type tank care top crane pipe (vertical)
Features
It is used in auto open unloading. It get vertical installation and reliable fix.
Specification size
|
Type
Parameters |
A
|
B
|
C
|
D
|
H1
|
H2
|
H
|
|
LTQC—80A
|
1500
|
1700
|
1500
|
360
|
1270
|
2670
|
3100~3500
|
|
LTQC—100A
|
No: H——height from connection flange to the ground
