Airplane oil transportation climbing earth pipe LTFJ type
Features
Used in airplane pressure oil addition or gravity oil addition. It gets long service life, agile cooperation and convenience.
Technical parameters
Working pressure: 0.6Mpa
Flux range: 0~1200L/min
Application medium: aviation fuel
Working semi diameters: 15 meters(double), 25 meters(four)

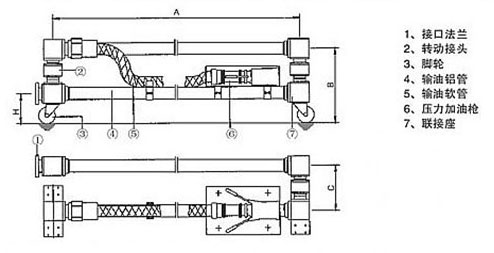

Structure dimension
|
Type |
A |
B |
C |
H |
Remarks |
|
LTFJ-80Y\LTFJ-80Z |
5000 |
585 |
360 |
225 |
Y——pressure oil addition |
|
LTFJ-100Y\LTFJ-100Z |
5000 |
650 |
420 |
230 |
Z——gravity oil addition |
No: H——height from connection flange to the ground
