Under Can Sampler LTCY- L type

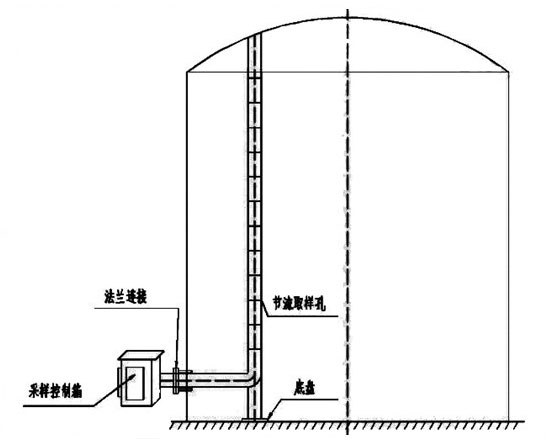

     LTCY-L type product adopts vertical tube fixed point sampler and the inner diameter is φ6-φ8mm samplers with diameter φ45¡«φ76mm support tubes inside.

   According to the height of the highest liquid, every meter should be one sampling point and at the bottom, another one should be here to get pure samples

    Meet GB/T4756-1998 , No.8.2.2 principle: If the difference between density is larger than 0.0012g/cm^{3 (}transparent,low viscosity),or larger than 0.0015 g/cm³(fuel oil) samples should be got every meter  as well as the moisture is 0-0.1%.



Suitable tank: vault tank

Suitable medium: all mediums

Sampling precision:  the total difference is less than 1.5 %

Maximum journey: 40 meter

Suitable temperature: -40°C~95°C(inside tank)
