Under Can Sampler LTCY type

First, introduction

The product is made according to ISO370-75<Liquid Petroleum Products Human power Sampling Method>and(GB/T 4756-84)<Petroleum and Liquid Petroleum New Products Sampling Method> cooperated with Luoyang Petroleum Chemical Project Company. The equipment can pass SH/T3414-1999<Petroleum Chemical Steel Vertical Light Oil Tank Under Can Sampler Test Standard>.

Second, advantages

1, it adopts soft connecting technology.

2, Open the sampling chest and sampling can be started. It is safety, convenient and time saving.

3, It can reduce the danger caused by static electricity.

4, The sampling tube adopts stainless steel structure.

Third, features

1, accurate sampling point;

2, The sampling tube and oil tank outside tune are connected with 304 materials stainless metal soft tubes.

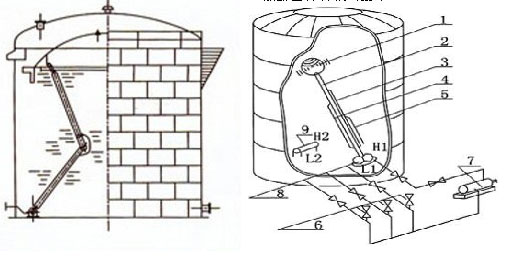

Products structure

1,floater 2, support tube 3, top sampling head 4, middle sampling head

5, bottom sampling head 6,sampling mouth 7, hand move pump 8, abutment 9, carriage

Operational principle

The sampler’s structure can meet the requirement accurately.

Sampler support tube height can maintain at the stated position.

Seventh, use principle

1, The nominal diameter is no more than 15mm

2, The fixed top can choose floating type.

3, The floating top can and inner top floating can choose folding type.

4, When the medium is blowing fuel, the sampling tube materials should be stainless steel and alufer.

5, When the liquid level is under 4M, sampling should not be carried on.

Notes

1, In order to let the oil sample represent the aimed oil, the operating workers should make sure the storage oil is no left and change it for new oil the sampling should be carried on.

2, Sampler should be packed, and transported in sections. Protect the valves and so on.

3, The entering and existing angle can be regulated.

4, The equipment materials should be determined to the condition of the customers.
